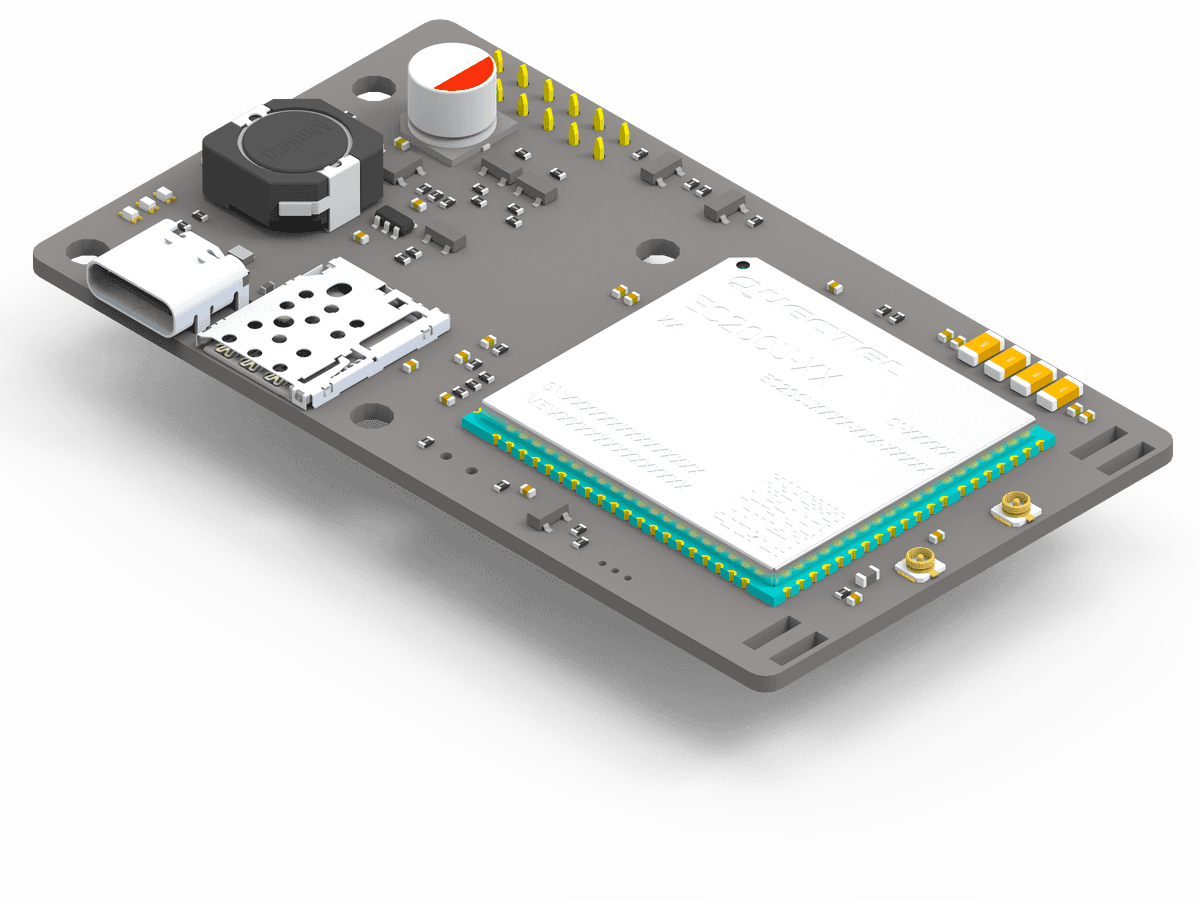

INT110

Advanced Combo Cloud Connector

The INT110 is the next-generation GSM-based IoT add-on that connects any LiBat BMS to the cloud for remote monitoring and advanced integration. It features a modern 4G+LTE and GNSS combo module, linking the battery system directly to the LiBat cloud platform over a fast, secure connection.

INT110

Overview

The INT110 brings high-speed cloud connectivity to any LiBat managed pack. It mounts as an add-on to all LiBat BMS types and bridges the BMS to the LiBat cloud platform over a modern 4G+LTE cellular link, delivering low-latency remote monitoring and advanced integration. A combined 4G+LTE and GNSS module handles both data and positioning in a single part, a push-push SIM card connector keeps field deployment quick, and status LEDs give an immediate read on power and network state. Fully integrated with the LiBat ecosystem, the INT110 is built for connected fleets, remote diagnostics, and over-the-air data exchange on current cellular networks.

Request Quote
The INT110 is the advanced, next-generation connectivity module that links LiBat battery systems to the cloud for remote monitoring and advanced integration. It connects as an add-on to all LiBat BMS types and relays live pack, module, and cell data to the LiBat cloud platform over a secure 4G+LTE cellular connection, with an external cellular antenna on a uFL connector. A combined 4G+LTE and GNSS module integrates high-speed data and position into a single part, providing both telemetry and location for connected fleet and mobility applications, with an external active GNSS antenna on a uFL connector. A push-push SIM card connector simplifies field deployment, and status LEDs report power and network state for fast diagnostics. As a fully integrated part of the LiBat ecosystem, the INT110 brings modern cellular cloud connectivity, remote configuration, and over-the-air data exchange to any LiBat managed battery.

Highlighted Features

  1. 01

    Compatible with All LiBat BMS Types

    Mounts as an add-on interface to any LiBat BMS, adding cloud connectivity without changing the existing battery design.

    LiBat BMS lineup
  2. 02

    Fully Compatible with the LiBat Connect Mobile Application

    Streams live battery data to the cloud so the LiBat CONNECT mobile app can monitor pack status, history, and GPS location from anywhere.

    LiBat CONNECT
  3. 03

    Fully Compatible with the LiMon CONNECT Web Application

    Feeds the same cloud data to the LiMon CONNECT web dashboard for remote fleet monitoring, historical analysis, and diagnostics from any browser.

    LiMon CONNECT
  4. 04

    Secure LiBat Cloud Connection

    Communicates directly and securely with the LiBat cloud platform for remote monitoring, diagnostics, and data logging.

  5. 05

    4G+LTE Cellular Link

    A next-generation 4G+LTE modem delivers fast, low-latency connectivity on current cellular networks, using an external antenna on a uFL connector.

  6. 06

    GNSS Combo Module

    A single combo module integrates high-speed cellular data and GNSS positioning, working with an external active antenna only, simplifying the design and the bill of materials.

  7. 07

    Remote Monitoring & Integration

    Streams live pack, module, and cell data to the cloud for remote monitoring and advanced system integration.

  8. 08

    Easy Field Deployment

    A push-push nanoSIM card connector makes inserting and swapping nanoSIM cards quick during installation and service.

  9. 09

    Network Status Indication

    Status LEDs give an at-a-glance read on power and cellular network state for fast field diagnostics.
