INT101

GSM+GPS Cloud Connector

The INT101 is a GSM-based IoT add-on that connects any LiBat BMS to the cloud for remote monitoring and advanced integration. It pairs a 2G GSM modem with an onboard GNSS module, linking the battery system directly to the LiBat cloud platform over a secure connection.

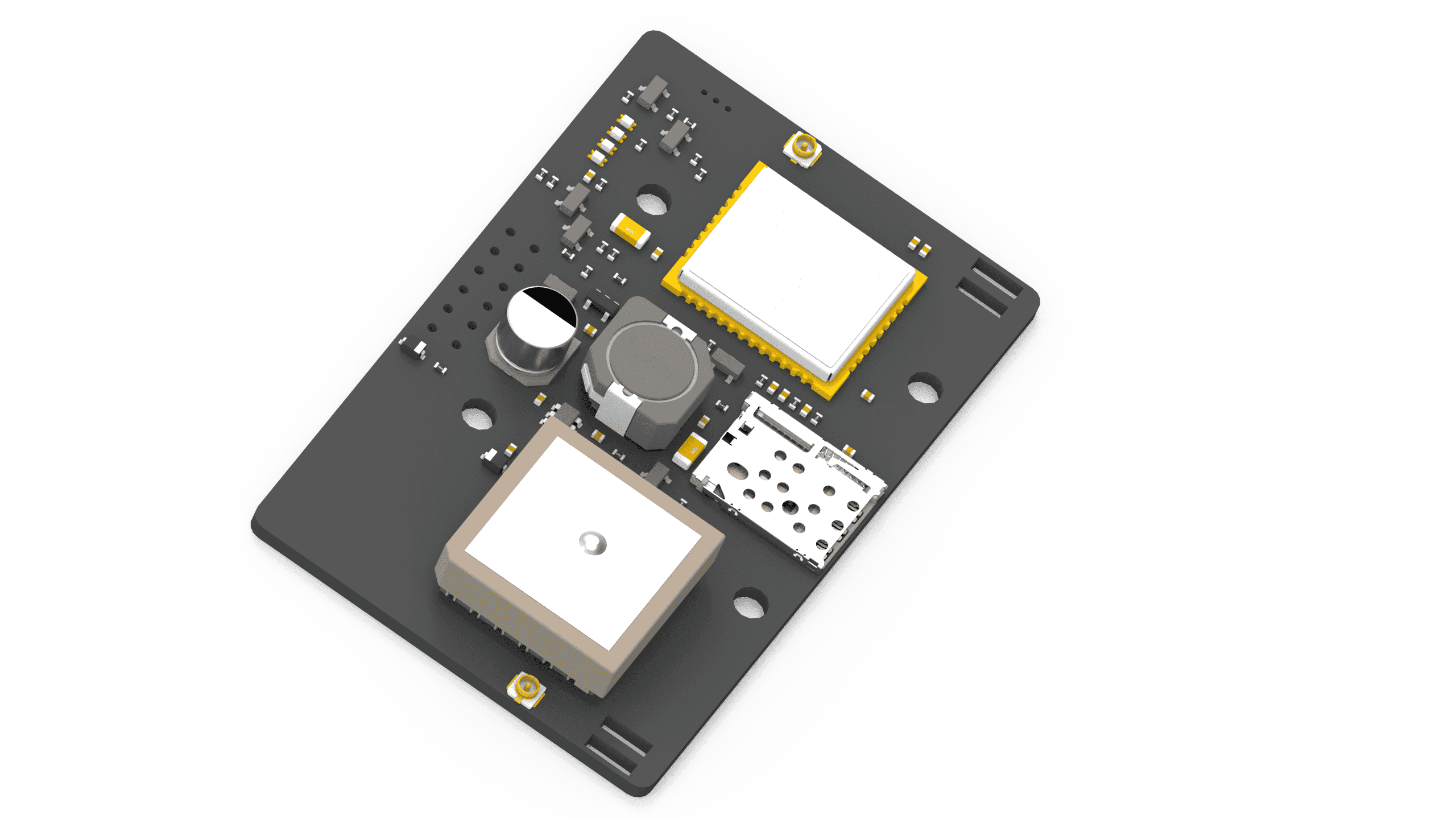

INT101 — 1

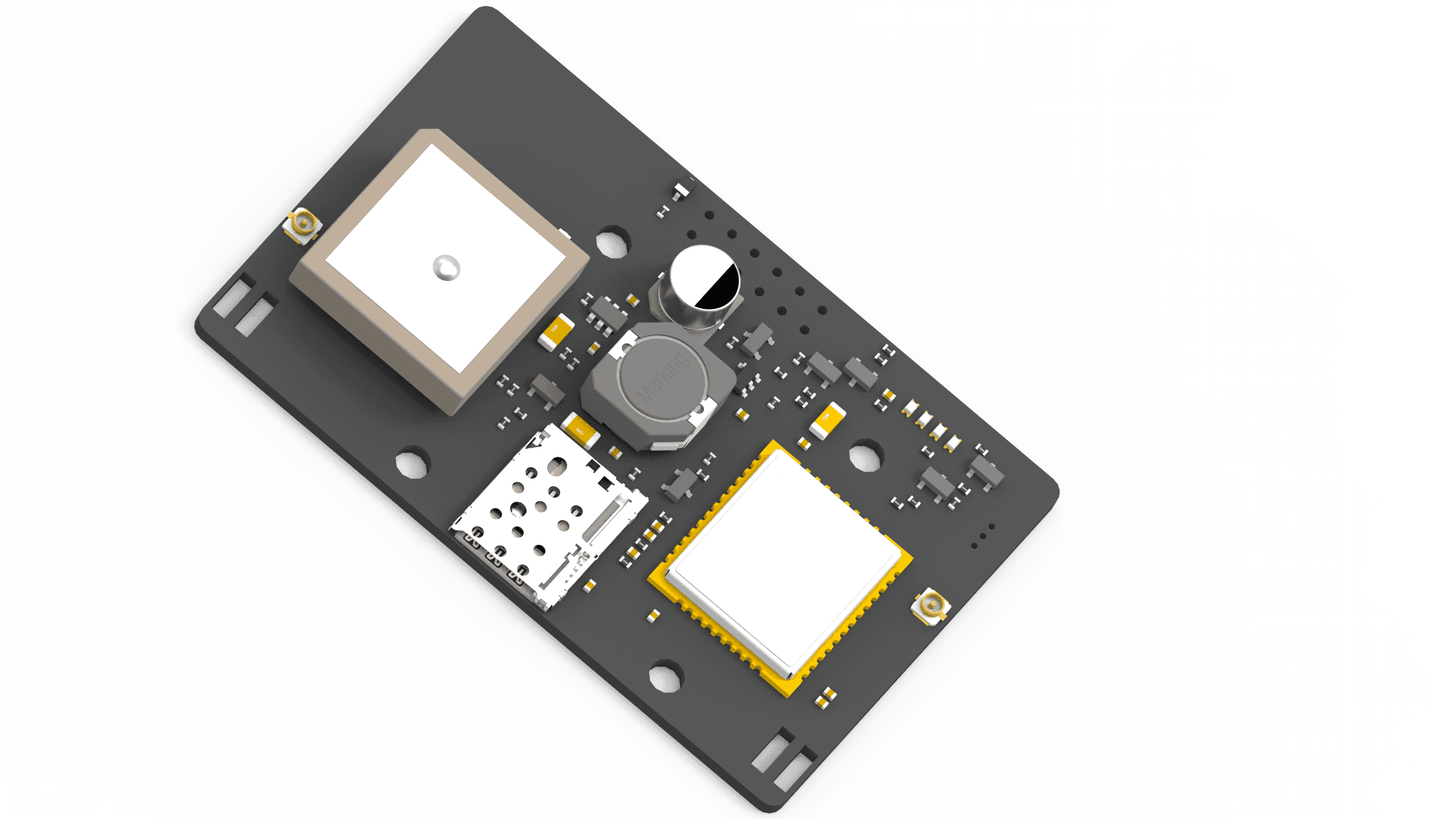

INT101 — 2

Overview

The INT101 turns any LiBat managed pack into a connected asset. It mounts as an add-on to all LiBat BMS types and bridges the BMS to the LiBat cloud platform over a 2G GSM cellular link, so pack, module, and cell data can be monitored and managed from anywhere. An onboard GNSS module adds location tracking, a push-push SIM card connector keeps field deployment quick, and status LEDs give an immediate read on power and network state. Compact and fully integrated with the LiBat ecosystem, the INT101 is built for fleet telemetry, remote diagnostics, and over-the-air data exchange.

Request Quote
The INT101 is a GSM-based connectivity module that links LiBat battery systems to the cloud for remote monitoring and advanced integration. It connects as an add-on to all LiBat BMS types and relays live pack, module, and cell data to the LiBat cloud platform over a secure 2G GSM cellular connection, with an external cellular antenna on a uFL connector. An integrated GNSS module provides position data using either the onboard ceramic antenna or an external active antenna, making the INT101 well suited to fleet and mobility applications that need both telemetry and location. A push-push SIM card connector simplifies field deployment, and status LEDs report power and network state for fast diagnostics. As a fully integrated part of the LiBat ecosystem, the INT101 brings cloud connectivity, remote configuration, and over-the-air data exchange to any LiBat managed battery.

Highlighted Features

  1. 01

    Compatible with All LiBat BMS Types

    Mounts as an add-on interface to any LiBat BMS, adding cloud connectivity without changing the existing battery design.

    LiBat BMS lineup
  2. 02

    Fully Compatible with the LiBat Connect Mobile Application

    Streams live battery data to the cloud so the LiBat CONNECT mobile app can monitor pack status, history, and GPS location from anywhere.

    LiBat CONNECT
  3. 03

    Fully Compatible with the LiMon CONNECT Web Application

    Feeds the same cloud data to the LiMon CONNECT web dashboard for remote fleet monitoring, historical analysis, and diagnostics from any browser.

    LiMon CONNECT
  4. 04

    Secure LiBat Cloud Connection

    Communicates directly and securely with the LiBat cloud platform for remote monitoring, diagnostics, and data logging.

  5. 05

    2G GSM Cellular Link

    An onboard 2G GSM modem keeps the battery connected over the cellular network, using an external antenna on a uFL connector.

  6. 06

    Onboard GNSS Positioning

    An integrated GNSS module adds location tracking, with a choice of an onboard ceramic antenna or an external active antenna.

  7. 07

    Remote Monitoring & Integration

    Streams live pack, module, and cell data to the cloud for remote monitoring and advanced system integration.

  8. 08

    Easy Field Deployment

    A push-push nanoSIM card connector makes inserting and swapping nanoSIM cards quick during installation and service.

  9. 09

    Network Status Indication

    Status LEDs give an at-a-glance read on power and cellular network state for fast field diagnostics.
