DIS700

7" Touchscreen Display

The DIS700 is a 7-inch capacitive touchscreen that monitors and configures LiBat battery systems from one glanceable interface. It connects to one or more BMS units over CAN Bus, adds Wi-Fi and Bluetooth access, and lets operators read live pack, module, and cell data and adjust system parameters right on-screen.

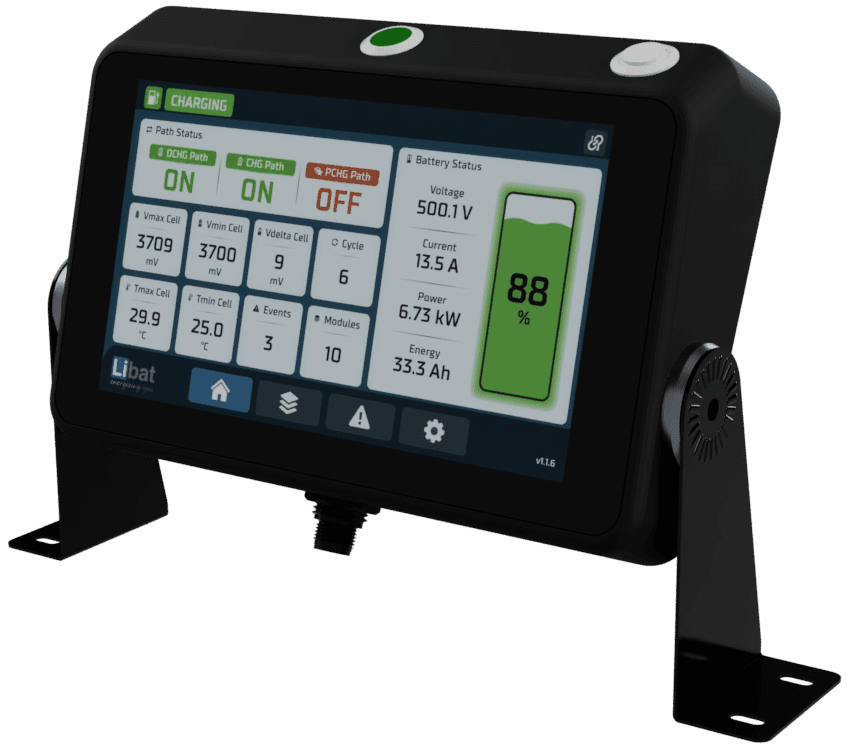

DIS700 — 1

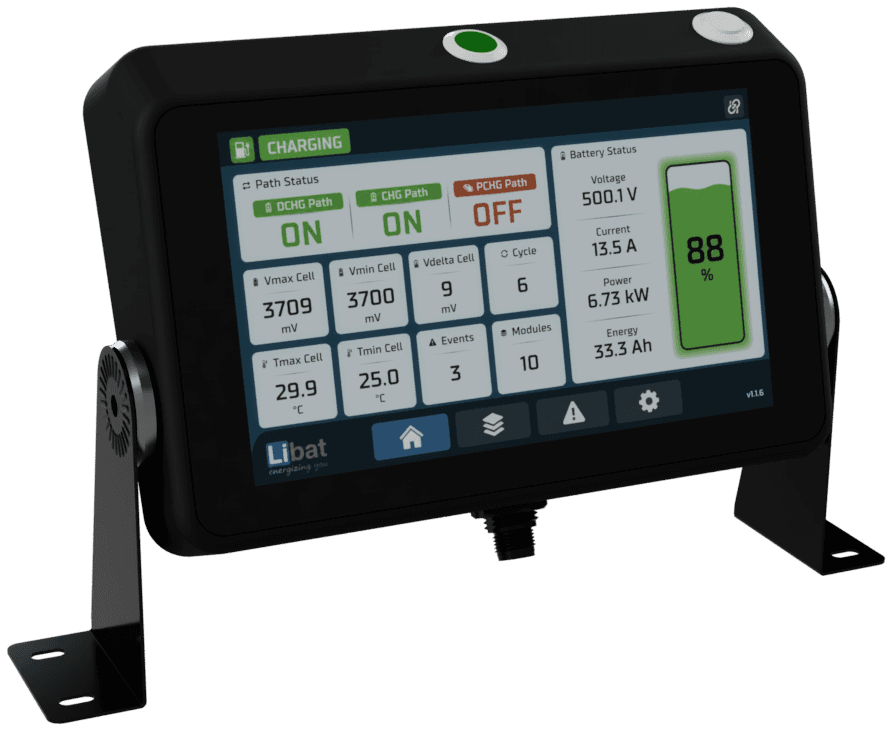

DIS700 — 2

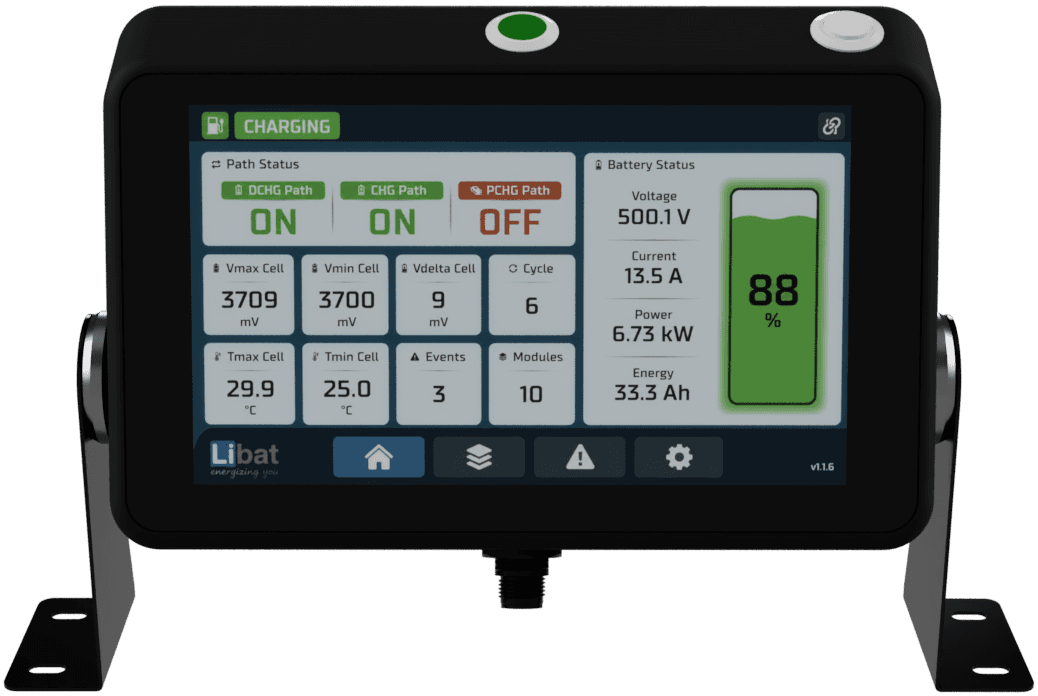

DIS700 — 3

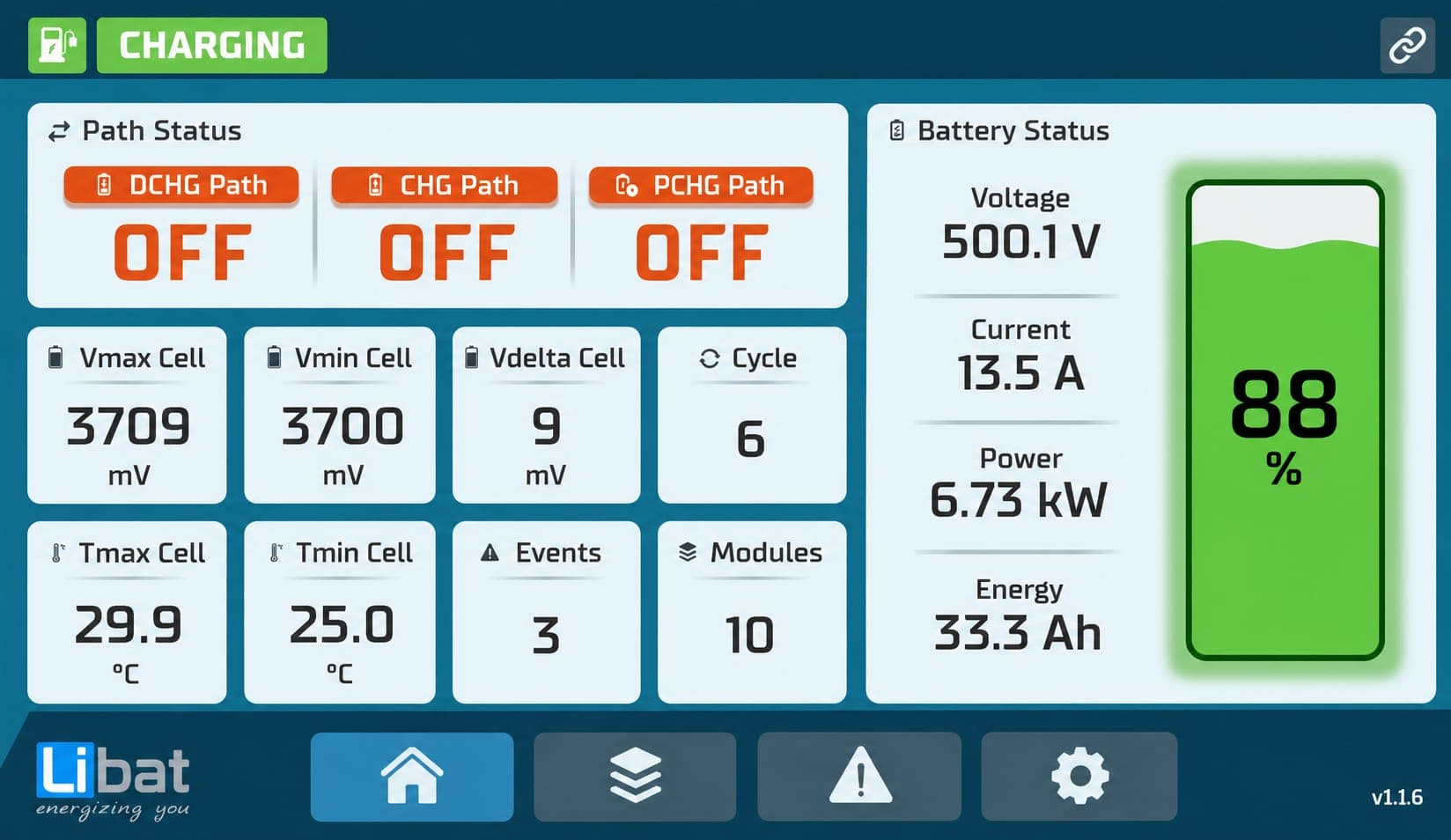

DIS700 — 4

Overview

The DIS700 turns any LiBat managed pack into a self-contained, touch driven dashboard. Its 7-inch display stays clear in bright ambient light, while capacitive touch gives quick access to battery status, module and cell detail, charge and discharge paths, and active events. A single unit can follow multiple BMS masters on the same CAN Bus, making it equally at home on a single vehicle or across a multi-pack energy storage system. A Wi-Fi browser GUI and Bluetooth add configuration, monitoring, and the LiBat Dashboard mobile app. Rotating mounting brackets make it quick to install at any position and angle, and the rugged enclosure is built for field conditions.

Request Quote
The DIS700 is a 7-inch smart display for real-time monitoring of LiBat battery systems. The optically bonded capacitive touchscreen presents a full BMS dashboard with state of charge, pack voltage, current, power, and energy alongside per-module and per-cell voltage and temperature detail. Charge, discharge, and precharge path states, cycle count, and active events are shown at a glance, and operators can drill into any module directly from the home screen. Connectivity is handled over CAN Bus using the LiBat Canbus Protocol v2, where a single display can track multiple BMS masters on the same line, with a Wi-Fi browser GUI for configuration and monitoring and Bluetooth for the LiBat Dashboard mobile app. Alarms, charge profiles, and system parameters are configurable from the touchscreen, and firmware can be updated in the field. The rugged enclosure, rotating mounting brackets, and a wide 12 to 80V DC supply range make the DIS700 quick to install and dependable in vehicles, cabinets, and industrial installations.

Highlighted Features

  1. 01

    Fully Compatible with the LiBat Dashboard Mobile Application

    Works with the LiBat Dashboard app on Android and iOS, putting the same battery data on a phone alongside the on-screen dashboard.

    LiBat Dashboard
  2. 02

    Bright, Optically Bonded Touchscreen

    A 7-inch optically bonded capacitive panel keeps the dashboard legible in bright ambient light and responds reliably to touch.

  3. 03

    Full BMS Dashboard

    Live state of charge, pack voltage, current, power, and energy, with per-module and per-cell voltage and temperature detail.

  4. 04

    Direct BMS Connection

    Connects to one or more BMS masters over CAN Bus 2.0, reflecting live pack, module, and cell data in real time.

  5. 05

    Multi-BMS Monitoring

    Follows multiple BMS masters on a single CAN Bus, scaling from one vehicle to a full multi-pack system.

  6. 06

    Path & Event Visibility

    Charge, discharge, and precharge path states, cycle count, and active events are surfaced on the home screen in real time.

  7. 07

    On-Screen Configuration

    Alarms, charge profiles, and system parameters can be reviewed and adjusted directly from the touchscreen, with no laptop required.

  8. 08

    Rugged Enclosure

    An IP54-rated front panel and a rugged housing keep the DIS700 dependable in dust and splash-prone field conditions.

  9. 09

    Adjustable Mounting Brackets

    Rotating mounting brackets let you fix the display to any surface and set its position and viewing angle.

  10. 10

    Field Upgradable Firmware

    In-field firmware updates keep protocols and features current over the product's life.
