Barled Smart Display

The DIS110 is a compact barled smart display that turns LiBat battery status into an at-a-glance, 10-bar LED readout. It connects to any LiBat BMS over CAN Bus, adds Wi-Fi and Bluetooth access, and fits a 60×60×13.85 mm footprint with a wide 12 to 80V DC supply.

Ask an Engineer

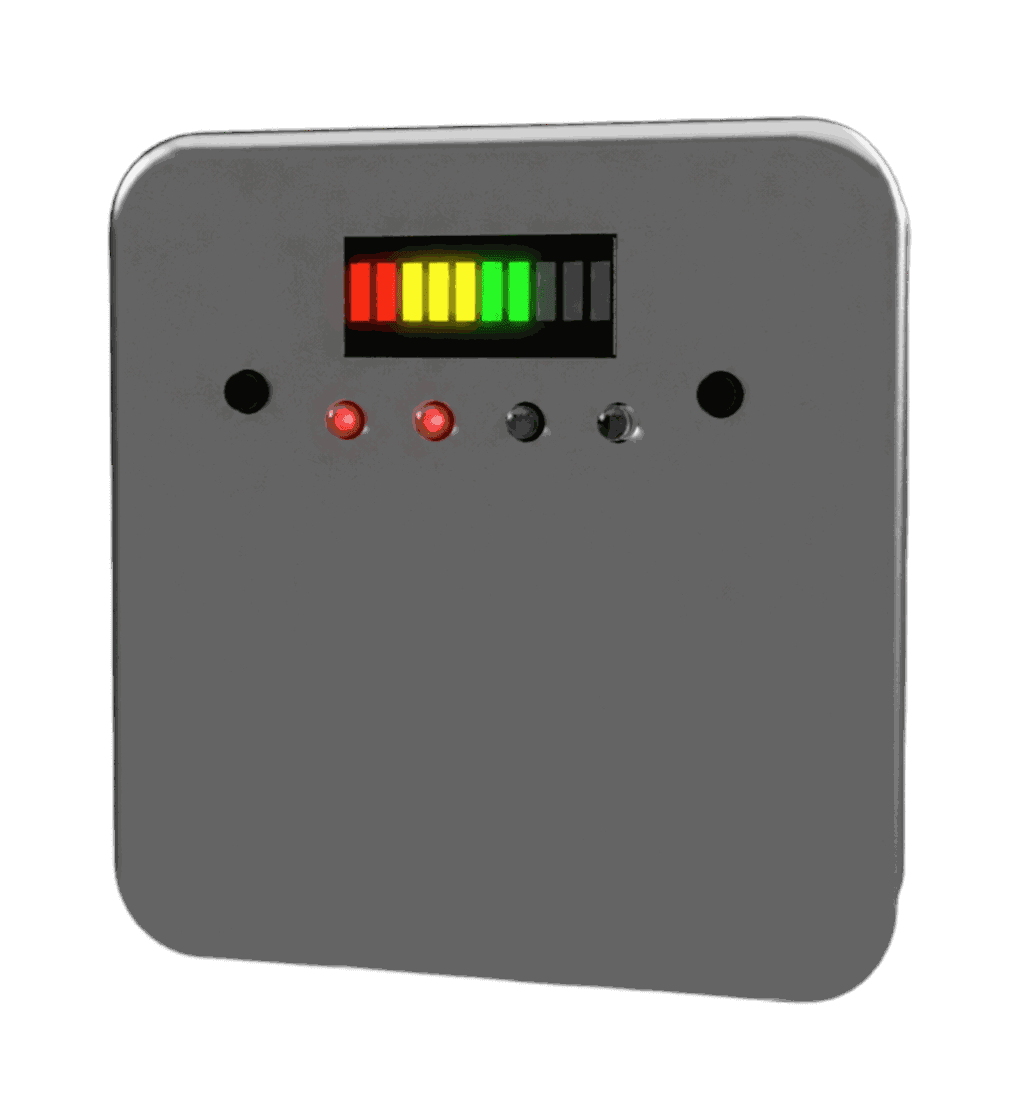

Front panel of the DIS110 barled display with a 10-segment LED bar graph and indicator LEDs

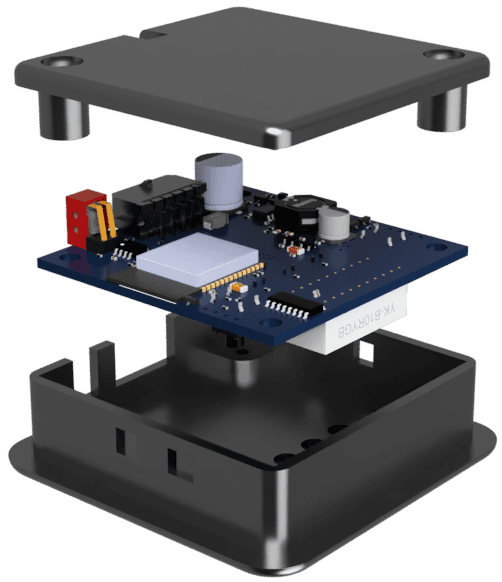

Exploded view of the DIS110 showing its top cover, circuit board and housing

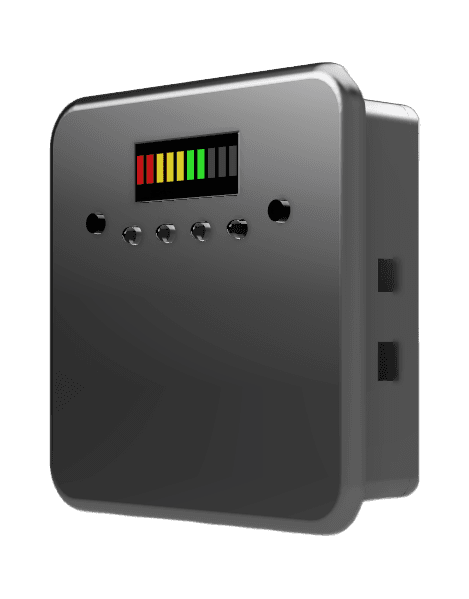

DIS110 enclosure seen from the side, with the LED bar graph and four push buttons on the front panel

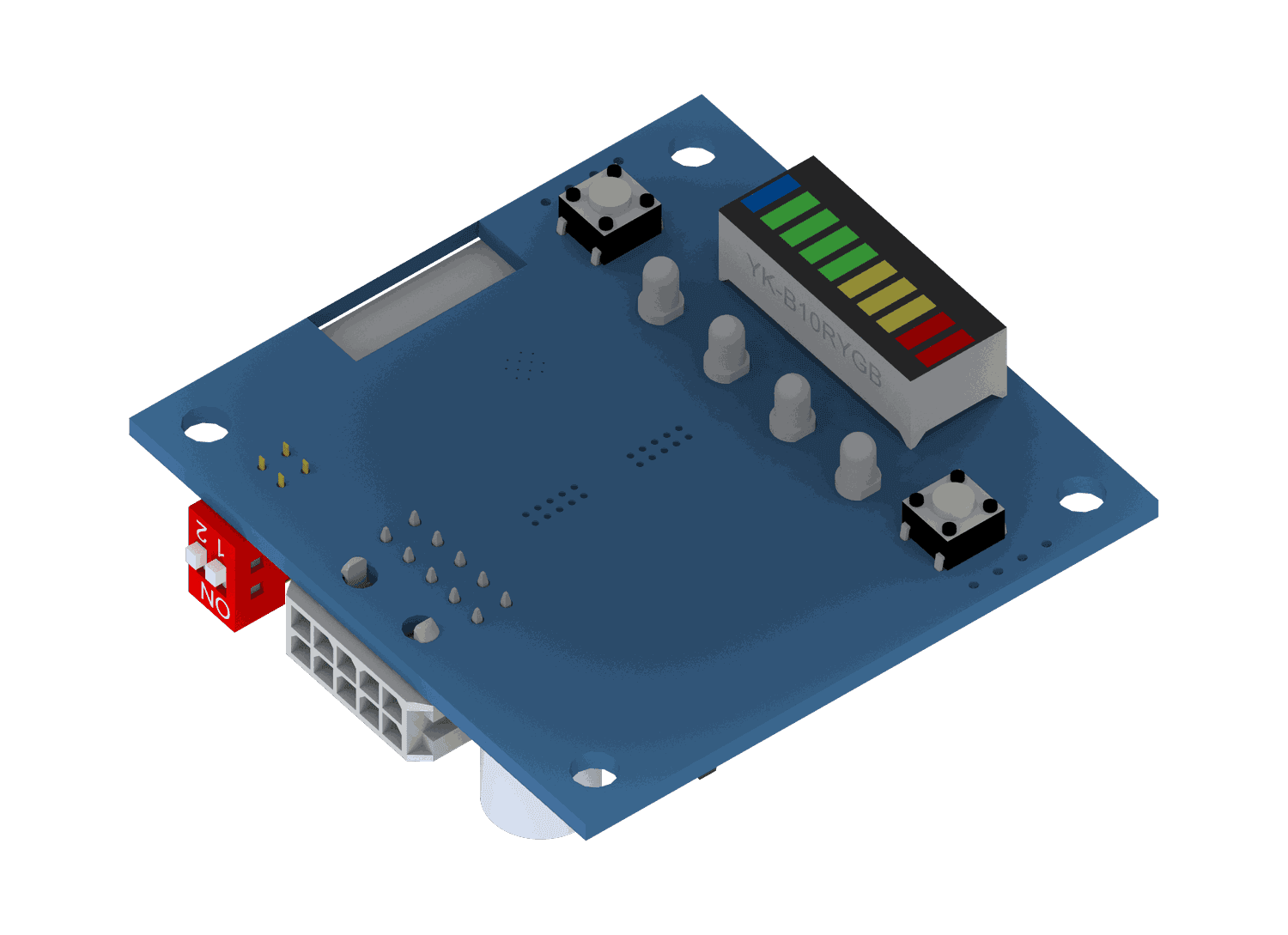

Front side of the DIS110 circuit board with a 10-segment LED bar, indicator LEDs, push buttons and a DIP switch

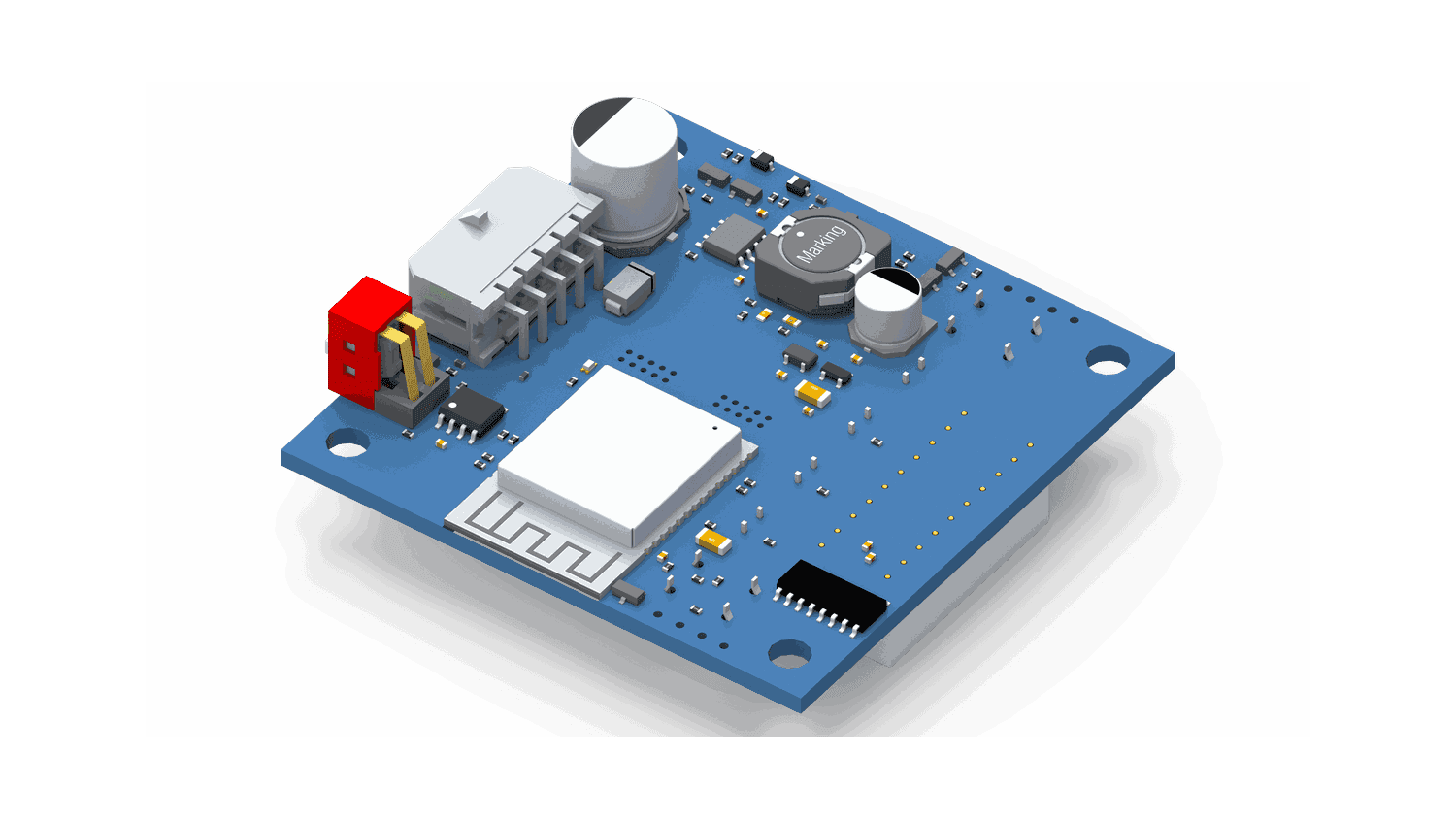

Rear side of the DIS110 circuit board with a wireless module and printed antenna, a power inductor and connectors

Overview

The DIS110 gives any LiBat managed pack a simple, instantly readable state-of-charge display. Its 10-segment, colour-graded LED bar shows charge level at a glance, while four status LEDs report power and run/error conditions. A CAN Bus 2.0 link speaks the LiBat Canbus Protocol v2 directly to the BMS, an onboard Wi-Fi GUI opens LED configuration and live status monitoring from any browser, and Bluetooth links to the LiBat Dashboard mobile app. One BMS button and one user button handle on-device actions, both configurable in firmware, and the whole board fits a compact 60×60×13.85 mm form factor on a 12 to 80V DC supply.

Request Quote
The DIS110 is a compact barled smart display that visualises LiBat battery state of charge on a 10-segment, colour-graded LED graph. It connects to any LiBat BMS over CAN Bus 2.0 using the LiBat Canbus Protocol v2, reflecting pack status in real time, while four status LEDs indicate power and run/error conditions for fast diagnostics. An onboard Wi-Fi GUI lets you adjust LED behaviour and monitor live BMS status from a browser on the local network, while Bluetooth Low Energy connects the LiBat Dashboard mobile app, with no cabling beyond the CAN bus. One BMS button and one configurable user button provide on-device control, and the firmware is field-upgradable so functions can evolve over time. A 60×60×13.85 mm footprint and a wide 12 to 80V DC supply make the DIS110 easy to integrate into light EVs, micromobility, and energy storage enclosures.

Highlighted Features

  1. 01

    Fully Compatible with the LiBat Dashboard Mobile Application

    Connects to the LiBat Dashboard app over Bluetooth Low Energy on Android and iOS, bringing full battery status and live diagnostics to your phone.

    LiBat Dashboard
  2. 02

    Optional Enclosure

    Use it as a bare board for built-in integrations, or add the optional enclosure with panel-mount brackets for standalone installs.

  3. 03

    10-Bar LED State of Charge

    A colour-graded, 10-segment LED graph shows pack charge level at a glance, with no screen to read.

  4. 04

    Direct BMS Connection

    A CAN Bus 2.0 link using the LiBat Canbus Protocol v2 reflects real-time BMS status.

  5. 05

    Wi-Fi Configuration GUI

    Adjust LED behaviour and monitor live BMS status from any browser on the local network.

  6. 06

    Custom Logo

    The logo shown in the Wi-Fi GUI can carry your own brand mark instead of the LiBat one. Upload the image from any browser on the local network, so an OEM or distributor can present the interface under its own identity without a firmware rebuild.

  7. 07

    Status Indication

    Four status LEDs indicate power and run/error conditions for quick diagnostics.

  8. 08

    On-Device Buttons

    A dedicated BMS button and a configurable user button handle on-device actions.

  9. 09

    Field Upgradable Firmware

    Firmware updates allow user button functions and behaviour to be reconfigured over time.

  10. 10

    Compact Form Factor

    A 60×60×13.85 mm footprint and 12 to 80V DC supply fit tight enclosures across many pack types.
